Capsule Glass Elevator Series
Elegant Panoramic Elevators for Premium Buildings

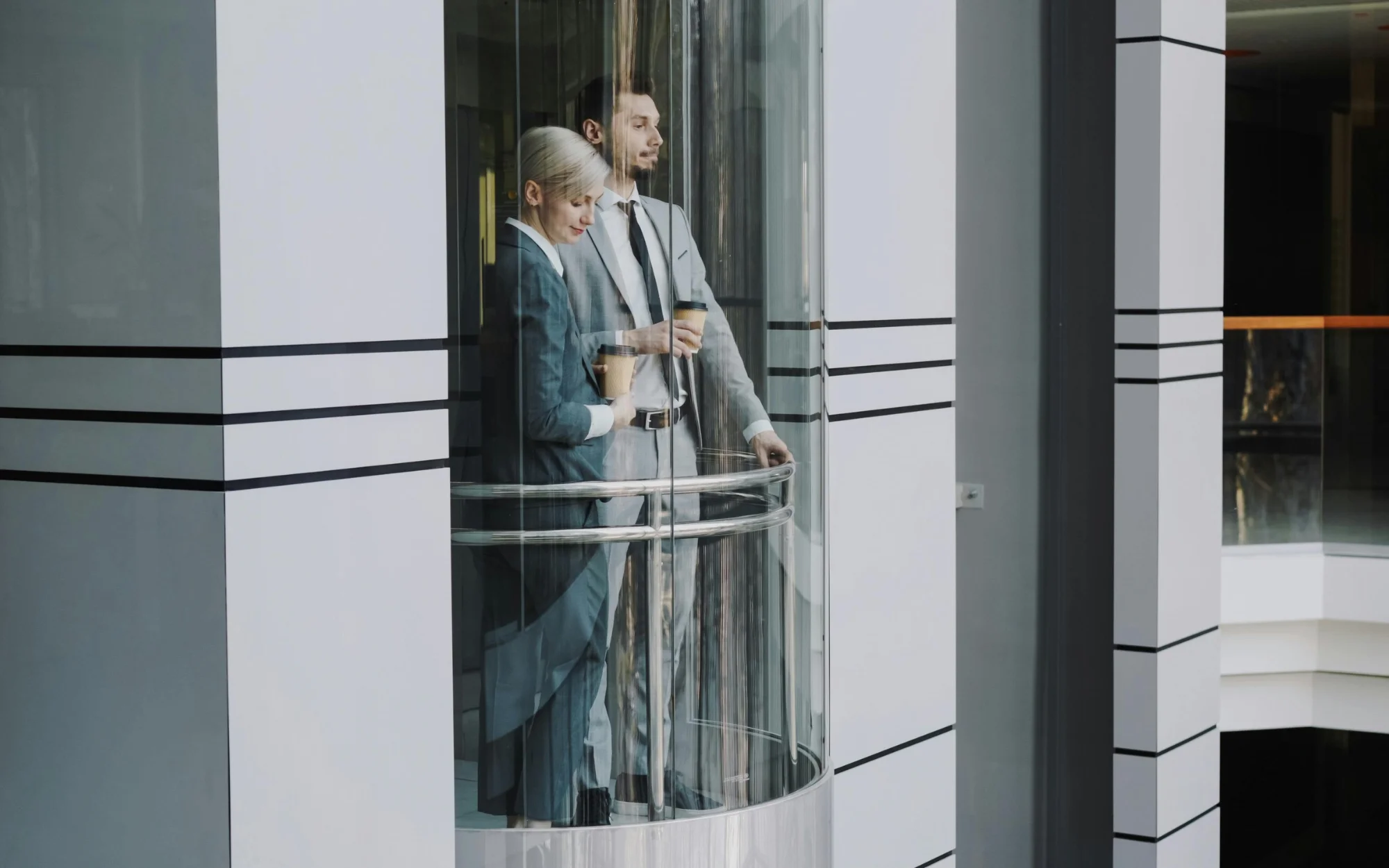

The Relivo Capsule Glass Elevator Series is designed to provide a luxurious and visually impressive vertical transportation experience. These elevators feature panoramic glass cabins that offer passengers a clear external view while travelling between floors, enhancing the architectural beauty of the building.
Capsule elevators are ideal for shopping malls, hotels, commercial complexes, airports, showrooms, and luxury residential buildings, where aesthetics and passenger experience are
equally important.
Engineered with advanced technology and precision components, Relivo capsule elevators ensure smooth operation, maximum safety, and elegant appearance.
- Key Features
Panoramic Glass Cabin
Transparent glass panels provide a 360° or semi-panoramic view, creating a visually attractive elevator experience.
Luxury Architectural Design
Enhances the building’s architectural appeal and becomes a centerpiece of modern structures.
Smooth & Silent Operation
Advanced VVVF drive system ensures vibration-free and quiet travel.
Customizable Structure
Capsule elevators can be designed in different shapes:
• Semi Circular
• Circular
• Square
• Diamond Shape
• Custom Architectural Design
High Safety Standards
Equipped with multiple safety systems to ensure safe passenger transportation.
Technical Specifications
General Specifications
| Parameter | Specification |
|---|---|
|
Elevator Type |
Capsule / Panoramic Passenger Elevator |
|
Capacity |
6 – 20 Persons |
|
Load Capacity |
408 kg – 1600 kg |
|
Speed Options |
0.5 m/s – 2.5 m/s |
|
Maximum Floors |
Up to 30 Floors |
|
Maximum Travel Height |
Up to 100 meters |
|
Operation |
Collective Selective Automatic |
|
Leveling Accuracy |
±5 mm |
Mechanical Specifications
| Component | Specification |
|---|---|
|
Machine Type |
Gearless / Geared Traction Machine |
|
Machine Room |
Machine Room / MRL (Machine Room Less) |
|
Traction System |
Steel Wire Rope Traction |
|
Guide Rails |
Precision T-Type Guide Rails |
|
Suspension Ratio |
1:1 / 2:1 |
Electrical Specifications
| Parameter | Specification |
|---|---|
|
Controller |
Microprocessor Based Intelligent Controller |
|
Drive Type |
VVVF AC Drive |
|
Power Supply |
415V ±10%, 3 Phase, 50 Hz |
|
Control Voltage |
24V DC |
|
Cabin Operating Panel |
Designer Stainless Steel Panel |
|
Landing Buttons |
Micro Touch Buttons |
|
Display |
LED / LCD Floor Display |
Door System
| Parameter | Specification |
|---|---|
|
Door Type |
Automatic Center Opening |
|
Door Operator |
VVVF Door Drive |
|
Door Width |
800 mm – 1100 mm |
|
Door Height |
2000 mm – 2100 mm |
|
Door Protection |
Infrared Light Curtain |
Glass and Structure Specifications
| Component | Specification |
|---|---|
|
Glass Type |
Laminated Toughened Safety Glass |
|
Glass Thickness |
10 mm – 16 mm |
|
Structure Material |
Stainless Steel / Mild Steel Frame |
|
Glass Panels |
Clear / Tinted / Decorative Glass |
|
Exterior Finish |
Powder Coated / Stainless Steel Finish |
Safety Systems
Relivo capsule elevators include advanced safety systems:
• Automatic Rescue Device (ARD)
• Overspeed Governor
• Door Interlock Safety System
• Overload Protection
• Emergency Alarm
• Intercom Communication System
• Emergency Stop Switch
• Safety Gear Mechanism
• Terminal Limit Switches
• Oil Buffer / Spring Buffer
All safety systems comply with IS elevator safety standards and international elevator safety guidelines.
Cabin Interior Options
Capsule elevators provide luxurious interior aesthetics.
Interior Finish Options
- Mirror Stainless Steel
- Hairline Stainless Steel
- Glass Panel Walls
- Decorative Stainless Steel Panels
- LED Ambient Lighting
Flooring Options
- Granite
- Marble
- Artificial Stone
- PVC Flooring
Ceiling Options
- LED Designer Ceiling
- Stainless Steel Ceiling
- Decorative Lighting Panels
Handrail
- Stainless Steel Designer Handrails
Applications
Relivo Capsule Glass Elevators are ideal for:
• Shopping Malls
• Luxury Hotels
• Commercial Complexes
• Airports
• Exhibition Centers
• Multiplex Theatres
• Corporate Buildings
• High-End Residential Buildings
Benefits of Home Lifts
• Enhances building architecture
• Creates luxury passenger experience
• Attractive design for commercial spaces
• Smooth and safe vertical transportation
• Customizable shapes and designs
Why Choose Relivo Home Lifts
• Elegant panoramic glass design
• Advanced safety systems
• Smooth and silent ride quality
- Quotation Request
Request a Project Quotation
Planning a capsule glass elevator for your project? Our engineering team will assist in selecting the right design.
