Hospital Elevator Series
Safe, Smooth, and Reliable Elevators for Healthcare Facilities
The Relivo Hospital Elevator Series is specially designed to meet the demanding requirements of hospitals, medical institutions, and healthcare centres. These elevators provide safe, smooth, and spacious transportation for patients, hospital staff, stretchers, wheelchairs, and medical equipment.
Engineered with advanced technology and precision control systems, Relivo hospital elevators ensure stable movement, accurate levelling, and minimal vibration, which is essential for patient comfort and medical safety.
- Key Features
Smooth and Vibration-Free Operation
Advanced VVVF drive technology ensures stable movement and gentle acceleration to prevent discomfort for patients.
Spacious Cabin Design
Large cabin size allows easy movement of stretchers, wheelchairs, and medical equipment.
Precise Floor Leveling
High precision leveling ensures safe entry and exit for stretchers and wheelchairs.
Reliable Operation
Designed for high-frequency usage in hospitals with continuous operation capability.
Hygienic Cabin Design
Special interior finishes designed for easy cleaning and hygienic environments.
Technical Specifications
General Specifications
| Parameter | Specification |
|---|---|
|
Elevator Type |
Hospital / Stretcher Elevator |
|
Capacity |
13 – 26 Persons |
|
Load Capacity |
1000 kg – 2000 kg |
|
Speed Options |
0.5 m/s – 2.5 m/s |
|
Maximum Floors |
Up to 40 Floors |
|
Maximum Travel Height |
Up to 120 meters |
|
Leveling Accuracy |
±5 mm |
|
Operation |
Collective Selective Automatic |
Mechanical Specifications
| Component | Specification |
|---|---|
|
Drive System |
Gearless / Geared Traction Machine |
|
Machine Type |
Machine Room / MRL |
|
Traction System |
Steel Wire Rope Traction |
|
Counterweight |
Steel Frame with Cast Iron Blocks |
|
Guide Rails |
High Precision T-Type Guide Rails |
|
Suspension Ratio |
1:1 / 2:1 |
Electrical Specifications
| Parameter | Specification |
|---|---|
|
Controller |
Microprocessor Based Intelligent Controller |
|
Drive Type |
VVVF AC Drive |
|
Power Supply |
415V ±10%, 3 Phase, 50 Hz |
|
Control Voltage |
24V DC |
|
Cabin Operating Panel |
Stainless Steel COP with Braille Buttons |
|
Landing Operating Panel |
Micro Touch Buttons |
|
Display |
LED / LCD Floor Display |
Door System
| Parameter | Specification |
|---|---|
|
Door Type |
Automatic Center Opening / Telescopic |
|
Door Drive |
VVVF Door Operator |
|
Door Width |
1000 mm – 1400 mm |
|
Door Height |
2100 mm |
|
Door Safety |
Infrared Light Curtain |
Large door opening allows easy stretcher and wheelchair movement.
Cabin Specifications
| Component | Specification |
|---|---|
|
Cabin Structure |
Reinforced Steel Structure |
|
Cabin Wall Finish |
Stainless Steel / Antibacterial Panels |
|
Cabin Size |
Large Cabin for Stretcher Movement |
|
Flooring |
Anti-Skid PVC / Vinyl Flooring |
|
Lighting |
LED Ceiling Lighting |
Safety Systems
Relivo hospital elevators include advanced safety systems:
• Automatic Rescue Device (ARD)
• Overload Protection
• Door Interlock Safety
• Overspeed Governor
• Emergency Alarm System
• Intercom Communication System
• Emergency Stop Switch
• Terminal Limit Switches
• Safety Gear Mechanism
• Oil Buffers
All safety systems comply with IS elevator safety standards and healthcare safety requirements.
Special Features for Hospitals
Hospital lifts require special design features for patient safety.
Stretcher-Friendly Design
Large cabin size allows easy transportation of stretchers and patient beds.
Wheelchair Accessibility

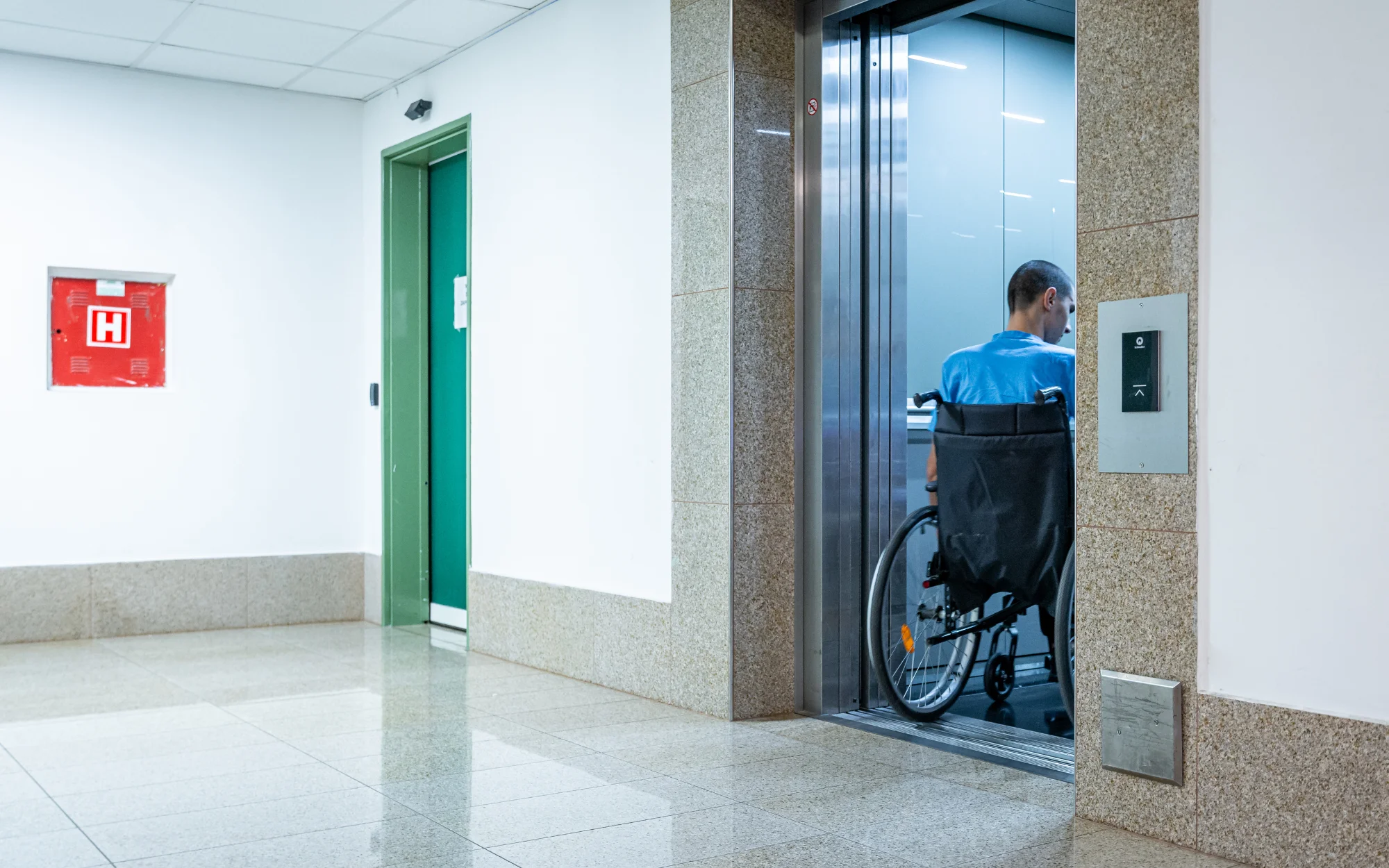

Low threshold entry and wide doors for wheelchair access.
Braille Buttons
Cabin buttons include Braille markings for visually impaired passengers.
Antibacterial Surfaces
Interior materials designed for hygienic and easy cleaning.
Emergency Communication
Intercom system connects passengers to the building control room.
Applications
Relivo Hospital Elevators are ideal for:
• Hospitals
• Medical Colleges
• Nursing Homes
• Clinics
• Diagnostic Centers
• Healthcare Institutions
Why Choose Relivo Hospital Elevators
• Designed specifically for healthcare facilities
• Smooth and vibration-free operation
• Large stretcher-friendly cabins
• Advanced safety systems
• Reliable performance for continuous usage
• Hygienic and easy-to-clean interiors
